GNSP3-750-12X05-TRP
Power supply encyclopedia
GNSP3-750-12X05-TRP
Stocked product Inquiry / Quotations

Highly powered +12V + ATX Nonstop Power Supply

Highly powered +12V + ATX Nonstop Power Supply

• Ultrahigh efficiency:80% to 85%
• Isolated between ATX and 12V outputs
• Completely uninterruptible backup system at blackout
• 19 inch rack size and 3U in height
• Remote ON/OFF control for 12V and ATX output individually with external signal

continuation maximum capacity
708.1W
peak capacity
1067.5W

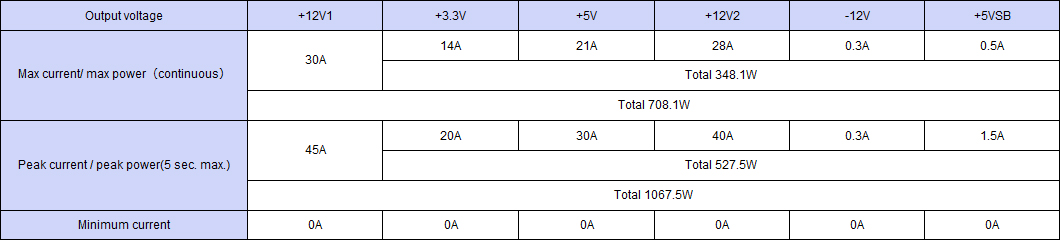

Output specification
Output specification
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 82Wx128Hx235D
Weight 3.00 kg typ
Input Voltage AC 85 to 264V *Refer to the specification.
Efficiency AC 80% typical at AC 100V/85% typial at AC 240V
Power factor 96% min. at AC 100V/90% min. at AC 240V
Input changeover system Worldwide
Safety
High frequency current regulation IEC61000-3-2 (Ed. 2.1) Class D compliant
EMI standard
(Input feedback noise)
VCCI-B FCC-B CISPR22-B and EN55022-B compliant
CE marking
EMS immunity Electrostatic discharge: EN61000-4-2 compliant
Radiated, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips/fluctuation: EN61000-4-11 compliant
MTBF 46,000H
Operating temperature -10 to 70 deg C
Leakage current 0.5mA max. at AC 100V/1mA max. at AC 200V/1.2mA max. at AC 240V
Cooling systems Forced air cooling
Insulation
Output ground connection
Warranty Three years after delivery; The defective unit shall be repaired or replaced if defects belong to us.
Compatible battery pack (Separately sold):When each icon is clicked, corresponding description is displayed.
Lead complianceNickel Metal Hydride uncomplianceNickel Cadmium uncompliance Lithium Ion uncomplianceCapacitor uncompliance
BS19A-P48/5.0L 3U/4U size large capacity battery package
Accessory (Optional)
ACC6144 Startup Shorting Connector
ACC6145 Interlocking Connector for Output ON/OFF Control Signal
WH-12PAD12PAD-500 Signal Harness
WH-M2022-500 20-Pin Mother Board Harness
WH-M2422-500 24P Harness for Motherboard
WH-PP610-850 Peripheral Connector Harness(Peripheral*5 FDD*1)
WH-PS610-850 Peripheral Connector HarnessPeripheral Connector Harness(Peripheral*3 S-ATA*2 FDD*1)
WH-PS710-850 Peripheral Connector Harness(Peripheral*2 S-ATA*4 FDD*1)
WH-V0408-500 +12V Power Connector Harness (4P)
WH-V0808-500 +12V Power Connector Harness (8P)
WH-VG208-500 +12V Power Connector Harness With PCI Express Compatible Connector
WH2601-01(PS2601-01) RS232C Cable
WH2601-02(PS2601-02) RS232C Cable(Windows 2000 and later)
