GPSA-360-24-TP
Power supply encyclopedia
GPSA-360-24-TP
Stocked product Inquiry / Quotations

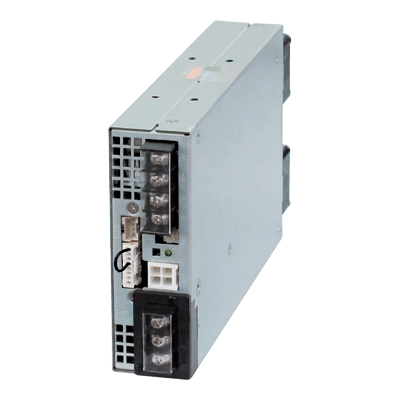

24V/15A(360W)Single Output Power Supply with backup function at blackout

24V/15A(360W)Single Output Power Supply with backup function at blackout

• Simple design as a low-price industrial power supply
• Backup operation at blackout with battery package
• 1U wide and 3U high - rack mount design
• Remote ON-OFF with external signal
• +12VSB output equipped

continuation maximum capacity
360W
peak capacity
408W

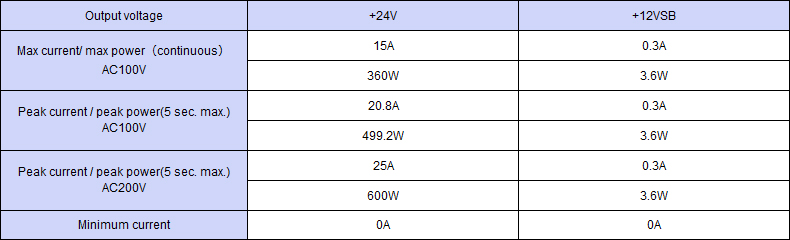

Output specification
Output specification
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 41Wx128Hx230D
Weight 1.40 kg typ
Input Voltage AC 85 to 264V (load derating: 100% at 90V/90% at 85V)
Efficiency AC 80% typical at AC 100V/83% typical at AC 200V
Power factor 96% min. at AC 100V/90% min. at AC 200V
Input changeover system Worldwide
Safety IEC60950-1,CSA60950-1(c-UL), and CE Marking
High frequency current regulation IEC61000-3-2 (Ed. 2.1) Class D and EN61000-3-2 (A14) Class D compliant
EMI standard
(Input feedback noise)
VCCI-B FCC-B EN55022-B and CISPR22-B compliant
CE marking Low Voltage Directive (Planned)
EMS immunity Electrostatic discharge: EN61000-4-2 compliant
Radiated, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst:�@EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity:�@EN61000-4-8 compliant
Voltage dips and fluctuation:�@EN61000-4-11 compliant
MTBF 70,000H min.
Operating temperature -10 to 60 deg C (load derating: 100% at 40 deg C, 60% at 60 deg C)
Leakage current 0.21mA max. at AC 100V/0.5mA max. at AC 240V
Cooling systems
Insulation
Output ground connection
Warranty Three years after delivery; the defective unit shall be repaired or replaced if defects belong to us.
Compatible battery pack (Separately sold):When each icon is clicked, corresponding description is displayed.
Lead uncomplianceNickel Metal Hydride complianceNickel Cadmium uncompliance Lithium Ion uncomplianceCapacitor uncompliance
BS14A-H24/2.5L 1U/3U size Ni-MH battery package
Accessory (Optional)
WH-02XL04XL-350-01 Power Harness for Battery Package Connection
WH-04XL04XL-350 Power Harness for Battery Package Connection
WH-08XA08XA-500 Signal Harness
WH-16PAD04XA-350 Signal Harness for Battery Package Connection
WH-16PAD04XA-350-01 Signal Harness for Battery Package Connection
