OZM-030-12N12-J00-C
Power supply encyclopedia
OZM-030-12N12-J00-C
Stocked product Inquiry / Quotations

30W dual output power supply(+-12V type with chassis)

30W dual output power supply(+-12V type with chassis)

- High efficiency with synchronous rectification circuit
- Low standby power consumption and low noise
- Medical standard IEC60601-1 3rd compliant

continuation maximum capacity
36W
peak capacity
36W

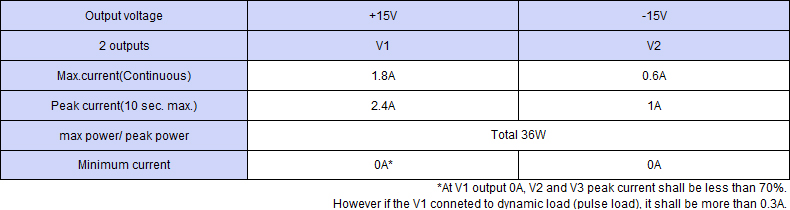

Output specification
Output specification
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 65Wx35Hx163D
Weight 0.28 kg typ
Input Voltage AC 85-264V
Efficiency AC 82% typ(AC100V)/85% typ(AC200V)
Power factor
Input changeover system Worldwide
Safety UL/CSA60950(UL/cUL),IEC60950(CE marking)
High frequency current regulation
EMI standard
(Input feedback noise)
VCCI,FCC part15,CISPR 22,EN55022 Class B compliant
CE marking Low voltage and EMI directive
EMS immunity
MTBF
Operating temperature -10 to 65 deg.C
Leakage current 0.2mA typ (AC100V)/0.5mA typ(AC240V)
Cooling systems Air-cooling without blower
Insulation
Output ground connection Capacitor ground
Warranty Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.
Accessory (Optional)
WH-C04VH-500-01 Output harness for OZM-030 (Dual output type) Series
WH-C05VH-800 Input Harness
WH-C05VH-800-01 Input Harness (Ferrite Core equipped)
