OZ-015-24-J00-K
Stocked product Inquiry / Quotations

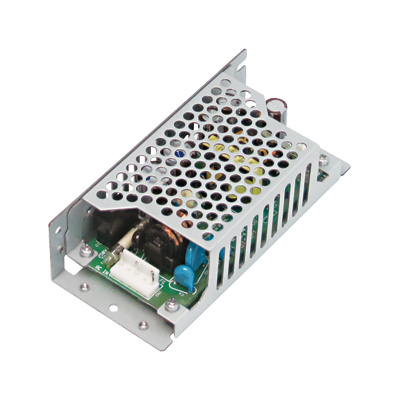

Small size 15W general purpose power supply (24V output with chassis and cover)
 OZ-015-24-J00-K - Double-sided PWBs with through holes suitable for industrial use (Other companies typically use single-sided PWBs.)
- Equipped with a variable resistor to adjust output voltage
- UL60950, CSA60950 approved
- High efficiency with synchronous rectifying system for all models in the series.
Continuous
16.8W
Peak

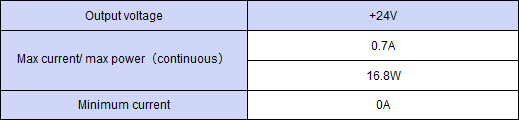

Output specification
Output specification ,Continuous 16.8W
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 57Wx36Hx125D
Weight 0.22 kg typ
Input Voltage AC 85-264V
Efficiency AC 79% typ (AC100V)/80% typ (AC240V)
Power factor
Input changeover system Worldwide
Safety UL60950-1, CSA60950-1
High frequency current regulation
EMI standard
(Input feedback noise)
VCCI-B FCC-B CISPR22-B EN55022-B compliant
CE marking
EMS immunity "Electrostatic discharge: EN61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips and fluctuation: EN61000-4-11 compliant"
MTBF 350,000H
Operating temperature -10 to 60 deg C, -10 to 65 deg C with forced air cooling
Leakage current 0.5mA max (AC100V), 1mA max (AC200V)
Cooling systems Air-cooling without blower
Insulation AC1500V/min between AC input and FG/DC output 50 ohm min between AC input and DC output/FG and between DC output and FG
Output ground connection Capacitor ground
Warranty Three years after delivery
Accessory (Optional)
WH-C04XH-800 Output harness for OZ-015 series
WH-C05VH-800 Input Harness
WH-C05VH-800-01 Input Harness (Ferrite Core equipped)
