UZP-600-A24-JH0
Power supply encyclopedia
UZP-600-A24-JH0
Stocked product Inquiry / Quotations

Fanless power supply unit supporting
the peak power of 1200W(Horizontal connector type)

Fanless power supply unit supporting
the peak power of 1200W(Horizontal connector type)

peak power of 1200W
high level of efficiency 95%typ
The built-in arrestor to avoid/mitigate the risk of lightning damage
Comes with a +12V standby output
With a +12V output (optional) linked withthe remote ON/OFF for the fan
Instantaneous power failures can be addressedby connecting a capacitor unit
Blackout detection signal and remote ON/OFFfeature incorporated
Models certified for medical standardswill also be added

continuation maximum capacity
600W
peak capacity
1200W

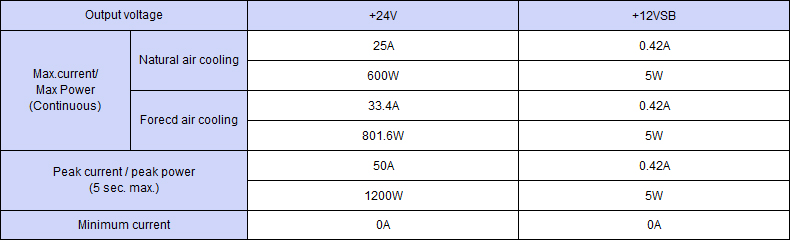

Output specification
Output specification
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 127Wx44Hx228.6D
Weight 1.3 kg typ
Input Voltage AC 85-264V
Efficiency AC 93% typ(AC115V)/95% typ(AC200V)
Power factor 98% typ(AC115V)/96% typ(AC200V)
Input changeover system Worldwide
Safety Scheduled to acquire UL62368, (c-UL)
Scheduled for CE marking
PSE(Ordinance item 2) Compliant
High frequency current regulation IEC61000-3-2 (ed.2.1) class D EN61000-3-2 (A14) class D compliant
EMI standard
(Input feedback noise)
VCCI-B FCC-B CISPR22-B EN55022-B compliant
CE marking Low voltage and EMI directive and RoHS2.0
EMS immunity Electrostatic discharge: EN61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips and fluctuation: EN61000-4-11 compliant
MTBF
Operating temperature -20 - 70deg.C(Air-cooling without blower)/-20 - 70deg.C(Forced Air Cooling)
Leakage current 0.06mA typ(AC100V),0.12mA typ(AC200V)
Cooling systems Air-cooling without blower
Insulation
Output ground connection Capacitor ground
Warranty Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.
Accessory (Optional)
WH-C04JFAD-500 Output harness for UZP-600 series (4pin type)
WH-C05JFAS-800 Input harness for UZP-600 series
WH-C07PA-500 Signal harness for UZP-600
