GPSA-1500-48P-PES
Power supply encyclopedia
GPSA-1500-48P-PES
Stocked product Inquiry / Quotations

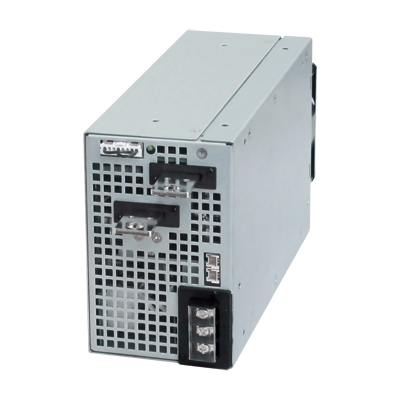

48V Single Output High Capacity Power Supply(copper bar type)

48V Single Output High Capacity Power Supply(copper bar type)

Industrial power supply with simple design for low price
Various safety standards (IEC/UL/CSA60950-1)
High efficiency 93%
External remote ON-OFF control signal available
+12VSB output available
Parallel operation available

continuation maximum capacity
1638W
peak capacity
2118W

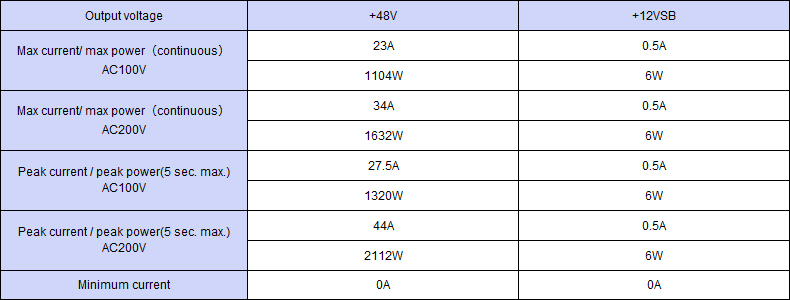

Output specification
Output specification
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 128Wx82Hx250D
Weight 2.8 kg typ
Input Voltage AC AC100-240V(AC85*-264V)(Output1062W)/AC200-240VAC180-264VˡOutout >1062W
Efficiency AC 87% min. (100 VAC), 91% min. (240 VAC)
Power factor 94% min. (100 VAC), 90% min. (240 VAC)
Input changeover system Worldwide
Safety UL60950-1,CSA22.2 No60950-1(c-UL)
High frequency current regulation IEC61000-3-2 (Ver.2.1) Class A compliant
EMI standard
(Input feedback noise)
VCCI-B,FCC-B,EN55022-B,CISPR22-B compliant
CE marking LVD,EMC
EMS immunity Electrostatic discharge: EN61000-4-2 compliant
Radiated,radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips/regulations: EN61000-4-11 compliant
MTBF 70,000H min
Operating temperature -10 to 60 deg.C
Leakage current 0.5mA max. (100 VAC) / 1.0mA max. (240 VAC)
Cooling systems Forced air cooling
Insulation AC input - DC output: 3000 VAC for 1 minute / AC input - FG: 2000 VAC for 1 minute
Output ground connection Capacitor grounding
Warranty 3 years after delivery. If any faults belong to us, the defective unit shall be repaired or replaced at our cost.
Accessory (Optional)
WH-02XA02XA-150 Signal harness for connecting GPSA-1500 in parallel
WH-08XA08XA-500 Signal Harness
