GPSA-1500-24P-TES
Stocked product Inquiry / Quotations

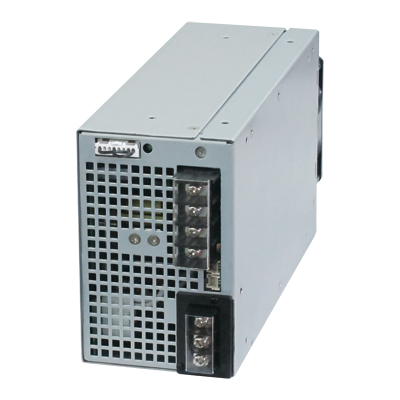

24V Single Output High Capacity Power Supply(block terminal type)
 GPSA-1500-24P-TES Industrial power supply with simple design for low price
Various safety standards (IEC/UL/CSA60950-1)
High efficiency 93%
External remote ON-OFF control signal available
+12VSB output available
Parallel operation available
Continuous
1518W
Peak
2046W

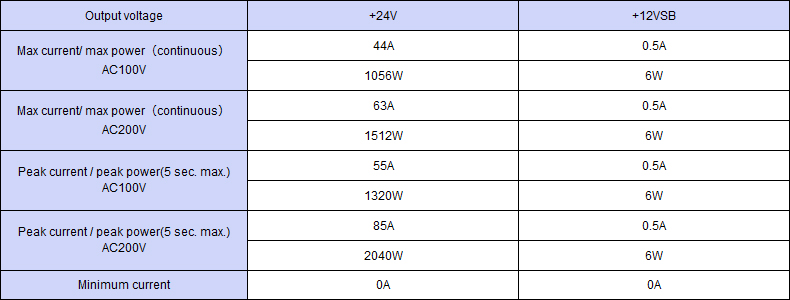

Output specification
Output specification ,Continuous 1518W,Peak Capacity 2046W
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 128Wx82Hx250D
Weight 2.6 kg typ
Input Voltage AC 85-264V
Efficiency AC 87% min. (100 VAC), 91% min. (240 VAC)
Power factor 94% min. (100 VAC), 90% min. (240 VAC)
Input changeover system Worldwide
Safety UL60950-1,CSA22.2 No60950-1(c-UL)
High frequency current regulation IEC61000-3-2 (Ver.2.1) Class A compliant
EMI standard
(Input feedback noise)
VCCI-B,FCC-B,EN55022-B,CISPR22-B compliant
CE marking
EMS immunity Electrostatic discharge: EN61000-4-2 compliant
Radiated,radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips/regulations: EN61000-4-11 compliant
MTBF 70,000H min
Operating temperature -10 to 60 deg.C
Leakage current 0.5mA max. (100 VAC) / 1.0mA max. (240 VAC)
Cooling systems Forced air cooling
Insulation AC input - DC output: 3000 VAC for 1 minute / AC input - FG: 2000 VAC for 1 minute
Output ground connection Capacitor grounding
Warranty 3 years after delivery. If any faults belong to us, the defective unit shall be repaired or replaced at our cost.
Accessory (Optional)
WH-02XA02XA-150 Signal harness for connecting GPSA-1500 in parallel
WH-08XA08XA-500 Signal Harness
