OZP-200-3R3-JSE-K
Power supply encyclopedia
OZP-200-3R3-JSE-K
Stocked product Inquiry / Quotations

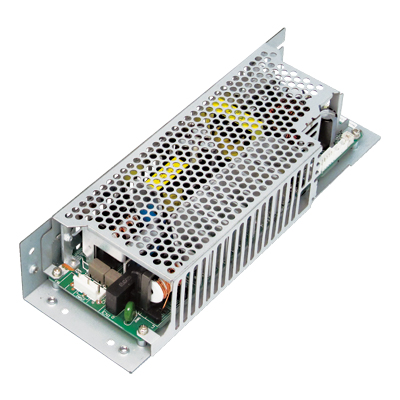

Low standby power consumption. PCB type AC-DC switch-mode power supply (+3.3V output, Nylon connector type with chassis and cover)

Low standby power consumption. PCB type AC-DC switch-mode power supply (+3.3V output, Nylon connector type with chassis and cover)

-High efficiency with synchronous rectifying system
-longer operating life with long-lived capacitors
-Parallel operation is possible
-High peak power
-Low-leakage current and low-noise
-Blackout detection signal equipped
-Medical standard approved type is also added to the lineup.

continuation maximum capacity
132W
peak capacity
198W
Output specification
Output specification
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 83Wx51Hx252D
Weight 0.83 kg typ
Input Voltage AC 85-264V *Refer to the specification
Efficiency AC 82% typ(AC100V)/85% typ(AC200V)
Power factor 99% typ( AC100V) / 92% typ(AC200V)
Input changeover system Worldwide
Safety UL60950-1, CSA60950-1(c-UL), and CE Marking, PSE (Ordinance item2) compliant
High frequency current regulation IEC61000-3-2 (ed.2.1) class D EN61000-3-2 (A14) class D compliant
EMI standard
(Input feedback noise)
VCCI-B FCC-B CISPR22-B EN55022-B compliant
CE marking Low voltage and EMI directive
EMS immunity Electrostatic discharge: EN61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips and fluctuation: EN61000-4-11 compliant
MTBF
Operating temperature -10 to 60 deg C *Refer to the specification
Leakage current 0.09mA at Rated Load, 0.19mA at Load ratio Max 5%(AC100V)
0.17mA at Rated Load, 0.23mA at Load Ratio Max 5% (AC200V)
Cooling systems Air-cooling without blower
Insulation AC 3kV for one minute between Input and Output/RC/AC FAIL.AC 2kV for one minute between Input and FG.AC 500V for one minute among DC output, RC, AC FAIL, and FG.
Output ground connection Capacitor ground
Warranty Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.
Accessory (Optional)
WH-02PH02PH-200 Signal harness for parallel operation
WH-02XH02XH-500 RC Signal Harness
WH-05XH05XH-500 Signal Harness
WH-C05VH-800 Input Harness
WH-C05VH-800-01 Input Harness (Ferrite Core equipped)
WH-C06VH-500 Output Harness(+)
WH-C07VH-500 Output Harness(-)
Download Product and Technical Information
Instruction Manual Test data Product catalogue product specification
