OZP-120-24-JB0
Stocked product Inquiry / Quotations

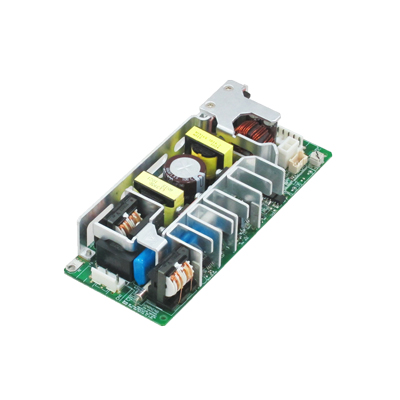

Highly Efficient 24V Single Output Power Supply (Nylon connector type)

Highly Efficient 24V Single Output Power Supply (Nylon connector type)

• Double-sided PWBs with through-holes suitable for industrial use (Other companies typically use single-sided PWBs.)
• Output adjustable resistor equipped
• UL60950, CSA60950, EN60950 acquired
•Higher power by more than 10% with the same volume than competitors
•Peak power up to 1.8 times as much as rated power

continuation maximum capacity
120W
peak capacity
180W
Output specification
Output specification
Standard, specifications: For standard and specifications, click each item.
Compatible case size
Outline drawing 73Wx35Hx180D
Weight 0.32 kg typ
Input Voltage AC 85-264V *Refer to the specification.
Efficiency AC 82% typical at AC 100V/85% typical at AC 200V
Power factor 99% typical at AC 100V/90% typical at AC 200V
Input changeover system Worldwide
Safety UL60950-1, CSA60950-1, EN60950-1, and CE Marking approved/Electrical Appliance and Material Safety Law compliant
High frequency current regulation IEC61000-3-2 (Edition 2.1) Class D compliant EN61000-3-2 (A14) Class D compliant
EMI standard
(Input feedback noise)
VCCI-B FCC-B CISPR22-B and EN55022-B compliant
CE marking Low Voltage Directive
EMS immunity Electrostatic discharge: EN61000-4-2 compliant
Radiated, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electomagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips fluctuation: EN61000-4-11 compliant
MTBF 268,000H
Operating temperature -10 to 60 deg C, -10 to 70 deg C (with forced-air cooling)
Leakage current 0.75mA max.
Cooling systems Air-cooling without blower
Insulation AC3000V/min between AC input and DC output/RC/AC_FAIL/BATT_LOW/FG AC2000V/min between AC input and FG 50 ohm min between DC output/RC/AC_FAIL/BATT_LOW/FG
Output ground connection AC3000V/min between AC input and DC output/RC/AC_FAIL/BATT_LOW/FG AC2000V/min between AC input and FG 50 ohm min between DC output/RC/AC_FAIL/BATT_LOW/FG
Warranty Three years after delivery; the defective unit shall be repaired or replaced if defects belong to us.
