pNSP2U-550P-AAS
1U/2U uncomplianceCompactPCI uncomplianceVMEbus uncomplianceERP complianceRedundant complianceOther uncomplianceSSI-DPS uncompliance
NSP Stocked product Inquiry / Quotations

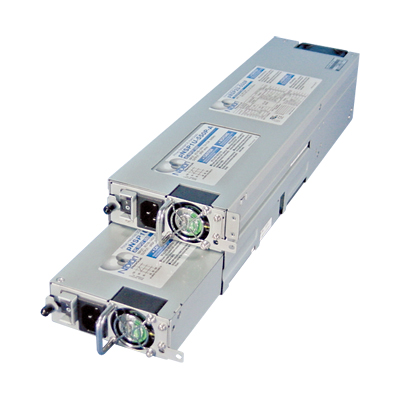

Nipron's Unique Primary Redundant Power Supply

Nipron's Unique Primary Redundant Power Supply

• Much higher efficiency, reliability and less temp.rise than existing redundant power supply with our unique patented technology
• 550W large-capacity power supply to meet SSI-ERP2U specifications (including the operatioin with single unit)
• Output connector method responding to a variety of connector types
• Power delivery ratio between two input units controlled by external signal
• With a primary unit combined, higher safety or economic efficiency is selectable.

See more details continuation maximum capacity
427.6W
peak capacity
550W

* Output harnesses are optional.
* DC input unit development is on its way.p>* For more details (PDF), click here.

*Please use Metric Screw Threads, ("M3" screws) for PSU mounting.(Inch Screw Threads cannot be used.)
Safety UL complianceCSA complianceEN unacquisitionCE unacquisitionCCC unacquisition
Reliability grade HFA uncomplianceFA complianceHOA uncomplianceOA uncompliance
Function :For description of function, click each icon
DC Startup uncomplianceRS232C uncomplianceTTL complianceSilent uncomplianceRoHS Directive complianceConnection compliance
PFC complianceLead-free compliance5VSBFAN uncomplianceTSFCFAN uncomplianceUSB uncompliance

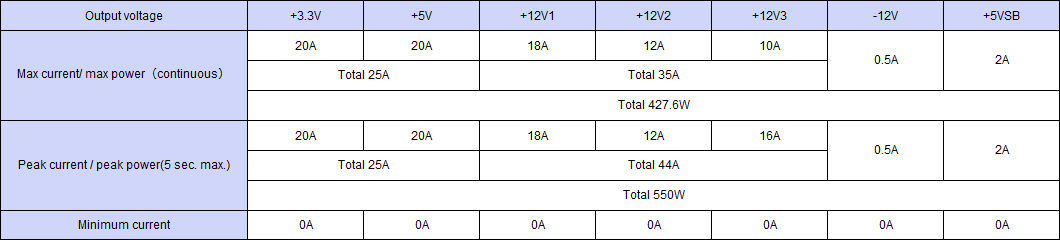

Output specification
Output specification
Output connector: For description of function, click each icon
Output connector for ATX Mother Board compliance ATX 12V ver. 2.0 or later power supply with SSI power connector complianceAT motherboard output connector uncomplianceProcessor connector for ATX motherboard complianceATX Motherboard Auxiliary Connector uncomplianceProcessor Connector for SSI Motherboard compliance
PCI-Express uncompliancePeripheral connector complianceConnectors for FDDs complianceConnector compliant with the S-ATA (Serial ATA) standard compliance
Standard, specifications: For standard and specifications, click each item.
Compatible case size ERP2U
Outline drawing 108Wx83.8Hx400D
Weight 4.60 kg typ
Input Voltage AC 85 to 264V *Refer to specifications.
DC DC unit under development
Efficiency AC 74% typical at AC 100V and 77% typical at AC 240V
DC
Power factor 99% typical at AC 100V and 98% typical at AC 240V
Input changeover system Worldwide
AC, DC input Available (with another unit of DC)
Safety UL60950, CSA60950(c-UL)
High frequency current regulation Compliant with IEC61000-3-2(Ver. 2.1) Class D
EMI standard
(Input feedback noise)
Compliant with VCCI Class A FCC Rules Class A and EN55022 Class A
CE marking
EMS immunity Electrostatic discharge to meet EN61000-4-2
Radioactive radio-frequency electromagnetic field to meet EN61000-4-3
Fast transient burst to meet EN61000-4-4
Lightning surge immunity to meet EN61000-4-5
Conductive radio frequency electromagnetic field to meet EN61000-4-6
Power frequency magnetic field immunity to meet EN61000-4-8
Voltage dips and fluctuation to meet EN61000-4-11
MTBF
Operating temperature 0 to 40 degrees C with full load, and, to 60 degrees C with 60% of load
Leakage current 0.5mA max. at AC100V and 1mA max. at AC240V per one unit
Cooling systems
Insulation AC 1500V/min. between AC input and DC-output/FG and between AC inputs
Output ground connection AC 1500V/min. between AC input and DC-output/FG and between AC inputs
Signal unit
Warranty Three years after delivery, however, if defects belong to us, the defective unit shall be repaired or replaced at our cost.
Accessory (Optional)
WH-M2024-500 20-Pin Mother Board Harness
WH-M2424-500 24-Pin Harness for Motherboard
WH-PP610-850 Peripheral Connector Harness(Peripheral*5 FDD*1)
WH-PS610-850 Peripheral Connector HarnessPeripheral Connector Harness(Peripheral*3 S-ATA*2 FDD*1)
WH-V0408-500 +12V Power Connector Harness (4P)
WH-V0808-500 +12V Power Connector Harness (8P)
WH2753(PS2753) AC Power Cable(PSE)
