| Compatible case size |
Other |
| Outline drawing |
50Wx26Hx87.5D |
| Weight |
0.07 kg typ |
| Input Voltage |
AC |
85-264V |
| Efficiency |
AC |
90% typ(AC100V)/92% typ(AC240V) |
| Power factor |
 |
| Input changeover system |
Worldwide |
| Safety |
IEC/EN62368-1(2nd), (CE marking)
UL/c-UL62368-1(2nd) expected to be approved
|
| High frequency current regulation |
|
EMI standard
(Input feedback noise) |
VCCI-B FCC-B CISPR22-B EN55022-B compliant |
| CE marking |
Low voltage and RoHS2.0 |
| EMS immunity |
Electrostatic discharge: EN61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips and fluctuation: EN61000-4-11 compliant |
| MTBF |
|
| Operating temperature |
-10 to 70 deg.C |
| Leakage current |
0.2mA typ (AC100V)/0.5mA typ(AC264V) |
| Cooling systems |
Air-cooling without blower |
| Insulation |
4kVAC/1minute between input and output,2kVAC/1minute between input and FG,2kVAC/1minute between each output/FG |
| Output ground connection |
Capacitor grounding |
| Warranty |
Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us. |

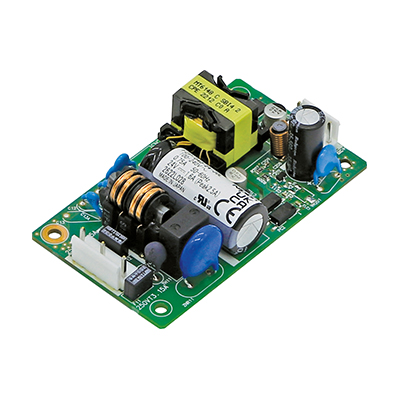

AC-DC Converter
