FZP-040-5-J0L
			Stocked product	Inquiry / Quotations

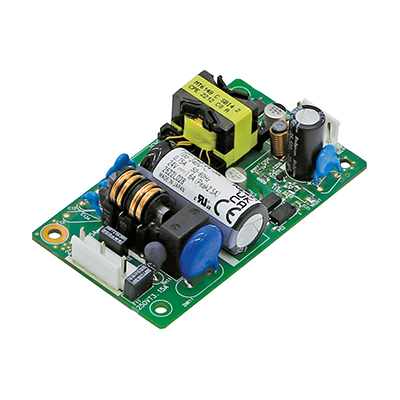

Small size and high efficiency PCB type single output power supply(5V30W Output type)
	Achieved miniaturization and large capacity Support the peak load Achieved high efficiency and low-heat-generation Double-sided through-hole printed circuit board adopted
	Continuous 30W		Peak 40W

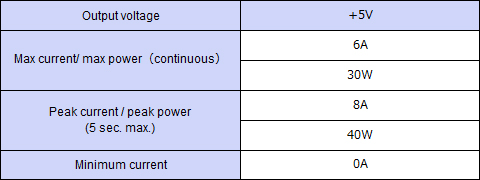

Output specification

Output specification ,Continuous 30W,Peak Capacity 40W

Standard, specifications: For standard and specifications, click each item.

Compatible case size	Other
Outline drawing	50Wx26Hx87.5D
Weight	0.07 kg typ
Input Voltage	AC	85-264V
Efficiency	AC	87% typ(AC100V)/89% typ(AC240V)
Power factor
Input changeover system	Worldwide
Safety	IEC/EN62368-1(2nd), (CE marking) UL/c-UL62368-1(2nd) expected to be approved
High frequency current regulation
EMI standard (Input feedback noise)	Electrostatic discharge: EN61000-4-2 compliant Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant Fast transient burst: EN61000-4-4 compliant Lightning surge: EN61000-4-5 compliant Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant Power source frequency magnetic immunity: EN61000-4-8 compliant Voltage dips and fluctuation: EN61000-4-11 compliant
CE marking	Low voltage and RoHS2.0
EMS immunity
MTBF
Operating temperature	-10 to 70 deg.C
Leakage current	0.2mA typ (AC100V)/0.5mA typ(AC264V)
Cooling systems	Air-cooling without blower
Insulation	4kVAC/1minute between input and output,2kVAC/1minute between input and FG,2kVAC/1minute between each output/FG
Output ground connection	Capacitor grounding
Warranty	Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.

Accessory (Optional)

WH-C04VH-800	Output harness for OZ-030/060/FZP-040 series
WH-C05VH-800	Input Harness
WH-C05VH-800-01	Input Harness (Ferrite Core equipped)
