OZM-030-15N15-J00-K
Stocked product Inquiry / Quotations
30W dual output power supply(+-15V type with chassis and cover)
OZM-030-15N15-J00-K - High efficiency with synchronous rectification circuit
- Low standby power consumption and low noise
- Medical standard IEC60601-1 3rd compliant
Continuous
36W
 Peak
36W

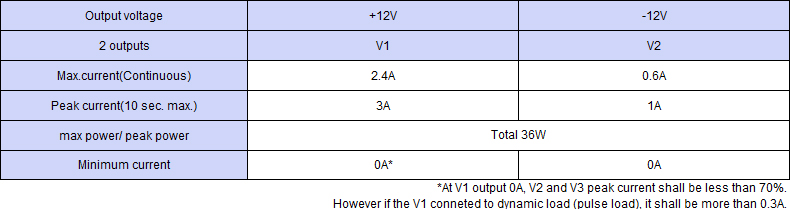

Output specification
Output specification ,Continuous 36W,Peak Capacity 36W
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 65Wx36Hx163D
Weight 0.33 kg typ
Input Voltage AC 85-264V
Efficiency AC 82% typ(AC100V)/85% typ(AC200V)
Power factor
Input changeover system Worldwide
Safety UL/CSA60950(UL/cUL)
High frequency current regulation
EMI standard
(Input feedback noise)		 VCCI,FCC part15,CISPR 22,EN55022 Class B compliant
CE marking
EMS immunity
MTBF
Operating temperature -10 to 65 deg.C
Leakage current 0.2mA typ (AC100V)/0.5mA typ(AC240V)
Cooling systems Air-cooling without blower
Insulation
Output ground connection Capacitor ground
Warranty Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.
Accessory (Optional)
WH-C04VH-500-01 Output harness for OZM-030 (Dual output type) Series
WH-C05VH-800 Input Harness
WH-C05VH-800-01 Input Harness (Ferrite Core equipped)
Download Product and Technical Information
Instruction Manual Test data Product catalogue product specification
