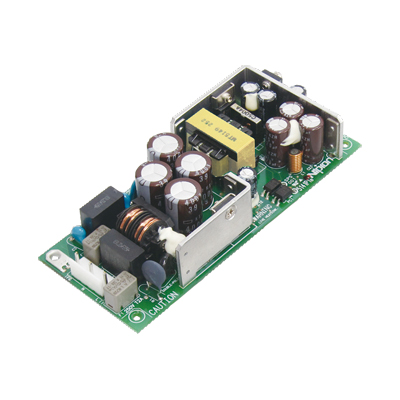

Nipron Products OZM-030-15N15-J00 AC-DC Converter

Nipron

Home

AC-DC Converter

OZM-030-15N15-J00
			Stocked product	Inquiry / Quotations

30W dual outputpower supply(+-15V type)
	- High efficiency with synchronous rectification circuit - Low standby power consumption and low noise - Medical standard IEC60601-1 3rd compliant
	Continuous 36W		Peak 36W

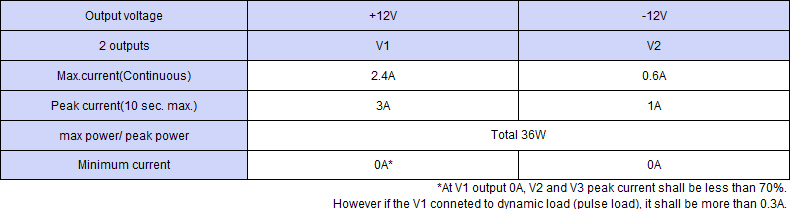

Output specification

Output specification ,Continuous 36W,Peak Capacity 36W

Standard, specifications: For standard and specifications, click each item.

Compatible case size	Other
Outline drawing	55Wx28Hx133D
Weight	0.16 kg typ
Input Voltage	AC	85-264V
Efficiency	AC	82% typ(AC100V)/85% typ(AC200V)
Power factor
Input changeover system	Worldwide
Safety	UL/CSA60950(UL/cUL)
High frequency current regulation
EMI standard (Input feedback noise)	VCCI,FCC part15,CISPR 22,EN55022 Class B compliant
CE marking
EMS immunity
MTBF
Operating temperature	-10 to 65 deg.C
Leakage current
Cooling systems	Air-cooling without blower
Insulation
Output ground connection	Capacitor ground
Warranty	Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.

Accessory (Optional)

WH-C04VH-500-01	Output harness for OZM-030 (Dual output type) Series
WH-C05VH-800	Input Harness
WH-C05VH-800-01	Input Harness (Ferrite Core equipped)
