OZM-030-0315N15-J00
Stocked product Inquiry / Quotations

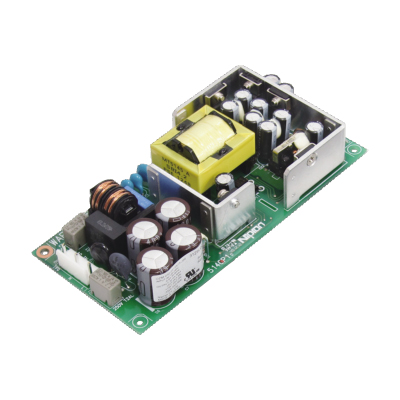

30W Triple output power supply(3.3+-12V type)
OZM-030-0315N15-J00 - High efficiency with synchronous rectification circuit
- Low standby power consumption and low noise
- Medical standard IEC60601-1 3rd compliant
Continuous
29.4W
 Peak
29.4W
Output specification
Output specification ,Continuous 29.4W,Peak Capacity 29.4W
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 65Wx31.5Hx140D
Weight 0.2 kg typ
Input Voltage AC 85-264V
Efficiency AC 76% typ(AC100V)/78% typ(AC200V)
Power factor
Input changeover system Worldwide
Safety UL/CSA60950(UL/cUL)
High frequency current regulation
EMI standard
(Input feedback noise)		 VCCI,FCC part15,CISPR 22,EN55022 Class B compliant
CE marking
EMS immunity
MTBF
Operating temperature -10 to 65 deg.C
Leakage current 0.2mA typ (AC100V)/0.5mA typ(AC240V)
Cooling systems Air-cooling without blower
Insulation
Output ground connection Capacitor ground
Warranty Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.
Accessory (Optional)
WH-C05VH-800 Input Harness
WH-C05VH-800-01 Input Harness (Ferrite Core equipped)
WH-C06VH-500-02 Output harness for OZM-030 (Triple output type) Series
