| Compatible case size |
Other |
| Outline drawing |
65Wx42Hx225D |
| Weight |
0.55 kg typ |
| Input Voltage |
AC |
85-264V |
| Efficiency |
AC |
80% typ (AC100V)/82% typ (AC240V) |
| Power factor |
 |
| Input changeover system |
Worldwide |
| Safety |
Certified UL60950-1,CSA60950-1(c-UL),CE marking(IEC62368-1),
The Electrical Appliance and Material Safety Law (section 2) compliant |
| High frequency current regulation |
|
EMI standard
(Input feedback noise) |
VCCI-B FCC-B CISPR22-B EN55022-B compliant
|
| CE marking |
Low voltage and EMI directive and RoHS2.0 |
| EMS immunity |
"Electrostatic discharge: EN61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips and fluctuation: EN61000-4-11 compliant"
|
| MTBF |
200,000H |
| Operating temperature |
-10 to 50 deg C, -10 to 60 deg C with forced air cooling |
| Leakage current |
0.5mA max (AC100V), 1mA max (AC200V)
|
| Cooling systems |
Air-cooling without blower |
| Insulation |
AC1500V/min between AC input and FG/DC output 50 ohm min between AC input and DC output/FG and between DC output and FG |
| Output ground connection |
Capacitor ground |
| Warranty |
Three years after delivery
|

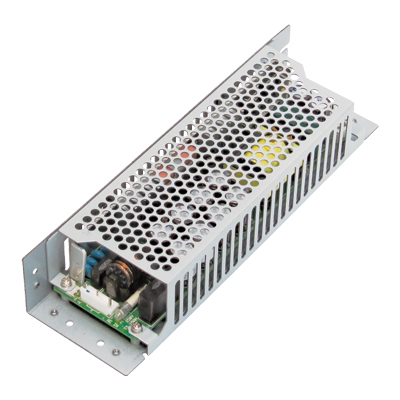

AC-DC Converter
