| Compatible case size |
Other |
| Outline drawing |
55Wx32Hx195D |
| Weight |
0.30 kg typ |
| Input Voltage |
AC |
85-264V |
| Efficiency |
AC |
74% typical at AC 100V/75% typical at AC 240V |
| Power factor |
 |
| Input changeover system |
Worldwide |
| Safety |
Certified UL60950-1,CSA60950-1(c-UL),CE marking(IEC62368-1),
The Electrical Appliance and Material Safety Law (section 2) compliant |
| High frequency current regulation |
|
EMI standard
(Input feedback noise) |
VCCI-B FCC-B CISPR22-B and EN55022-B compliant |
| CE marking |
Low voltage and EMI directive and RoHS2.0 |
| EMS immunity |
Electrostatic discharge: EN61000-4-2 compliant
Radiated, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips and fluctuation: EN61000-4-11 compliant |
| MTBF |
200,000H |
| Operating temperature |
0 to 60 deg C. |
| Leakage current |
0.5mA max. at AC 100V/1mA max. at AC 240V |
| Cooling systems |
Air-cooling without blower |
| Insulation |
AC1500V/min between AC input and FG/DC output 50 ohm min between AC input and DC output/FG and between DC output and FG |
| Output ground connection |
Capacitor ground |
| Warranty |
Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us. |

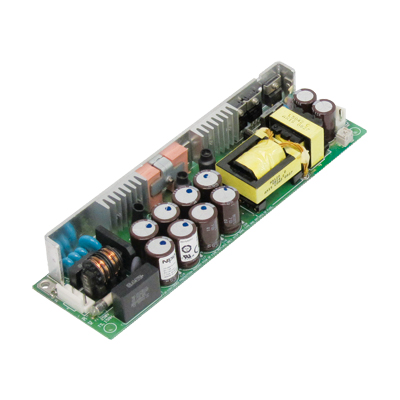

AC-DC Converter
