OZ-015-5-J00-K
			Stocked product	Inquiry / Quotations

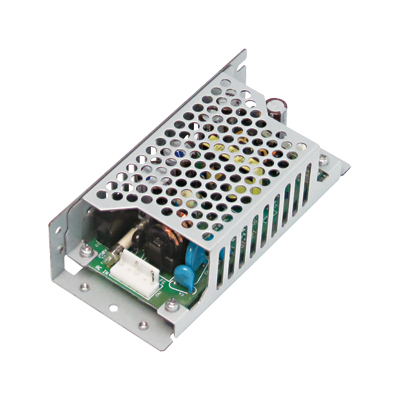

Small size 15W general purpose power supply (5V output with chassis and cover)
	- Double-sided PWBs with through holes suitable for industrial use (Other companies typically use single-sided PWBs.) - Equipped with a variable resistor to adjust output voltage - UL60950, CSA60950 approved - High efficiency with synchronous rectifying system for all models in the series.
	Continuous 15W		Peak

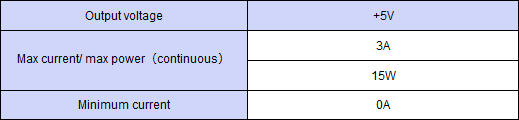

Output specification

Output specification ,Continuous 15W

Standard, specifications: For standard and specifications, click each item.

Compatible case size	Other
Outline drawing	57Wx36Hx125D
Weight	0.22 kg typ
Input Voltage	AC	85-264V
Efficiency	AC	75% typ (AC100V)/78% typ (AC240V)
Power factor
Input changeover system	Worldwide
Safety	UL60950-1, CSA60950-1
High frequency current regulation
EMI standard (Input feedback noise)	VCCI-B FCC-B CISPR22-B EN55022-B compliant
CE marking
EMS immunity	"Electrostatic discharge: EN61000-4-2 compliant Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant Fast transient burst: EN61000-4-4 compliant Lightning surge: EN61000-4-5 compliant Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant Power source frequency magnetic immunity: EN61000-4-8 compliant Voltage dips and fluctuation: EN61000-4-11 compliant"
MTBF	350,000H
Operating temperature	-10 to 60 deg C, -10 to 65 deg C with forced air cooling
Leakage current	0.5mA max (AC100V), 1mA max (AC200V)
Cooling systems	Air-cooling without blower
Insulation	AC1500V/min between AC input and FG/DC output 50 ohm min between AC input and DC output/FG and between DC output and FG
Output ground connection	Capacitor ground
Warranty	Three years after delivery

Accessory (Optional)

WH-C04XH-800	Output harness for OZ-015 series
WH-C05VH-800	Input Harness
WH-C05VH-800-01	Input Harness (Ferrite Core equipped)
