OZ-015-24-J00
			Stocked product	Inquiry / Quotations

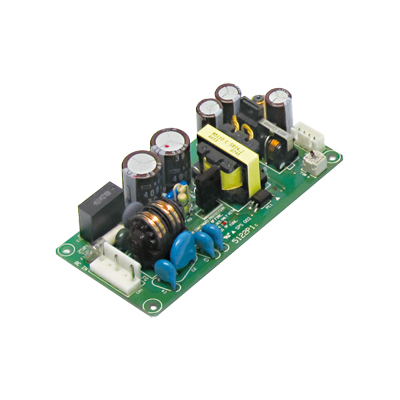

Compact 15W General-purpose Power Supply(24V output)
	• Double-sided PWBs with through-holes suitable for industrial use(Other companies typically use single-sided PWBs.) • Equipped with a variable resistor to adjust output voltage • High efficiency with synchronous rectifying system
	Continuous 15W		Peak

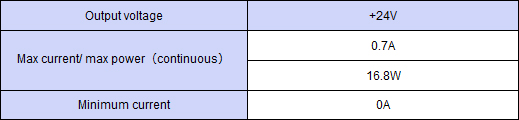

Output specification

Output specification ,Continuous 15W

Standard, specifications: For standard and specifications, click each item.

Compatible case size	Other
Outline drawing	50Wx28Hx105D
Weight	0.10 kg typ
Input Voltage	AC	85-264V
Efficiency	AC	79% typical at AC 100V/80% typical at AC 240V
Power factor
Input changeover system	Worldwide
Safety	UL60950-1, CSA60950-1
High frequency current regulation
EMI standard (Input feedback noise)	VCCI-B FCC-B CISPR22-B EN55022-B compliant
CE marking
EMS immunity	Electrostatic discharge: EN61000-4-2 compliant Radiated, radio frequency electromagnetic field: EN61000-4-3 compliant Fast transient burst: EN61000-4-4 compliant Lightning surge: EN61000-4-5 compliant Conductive radio frequency electromagnetic field: EN61000-4-6 compliant Power source frequency magnetic immunity: EN61000-4-8 compliant Voltage dips/regulations:�@EN61000-4-11 compliant
MTBF	350,000H
Operating temperature	-10 to 60 deg C.
Leakage current	0.5mA max(AC100V)/1mA max(AC240V)
Cooling systems	Air-cooling without blower
Insulation	AC1500V/min between AC input and FG/DC output 50 ohm min between AC input and DC output/FG and between DC output and FG
Output ground connection	AC1500V/min between AC input and FG/DC output 50 ohm min between AC input and DC output/FG and between DC output and FG
Warranty	One year after delivery

Accessory (Optional)

WH-C04XH-800	Output harness for OZ-015 series
WH-C05VH-800	Input Harness
WH-C05VH-800-01	Input Harness (Ferrite Core equipped)
