OZ-015-5-J00
Stocked product Inquiry / Quotations

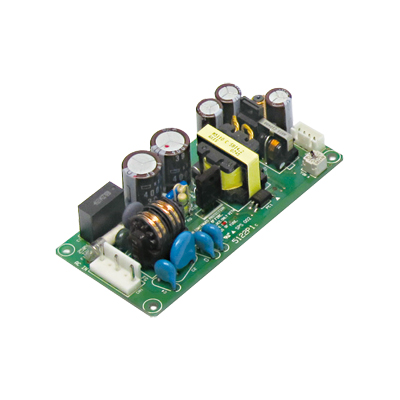

Compact 15W General-purpose Power Supply(5V output)
 OZ-015-5-J00 • Double-sided PWBs with through-holes suitable for industrial use(Other companies typically use single-sided PWBs.)
• Equipped with a variable resistor to adjust output voltage
• UL60950, CSA60950, EN60950 acquired
• High efficiency with synchronous rectifying system
Continuous
15W
Peak

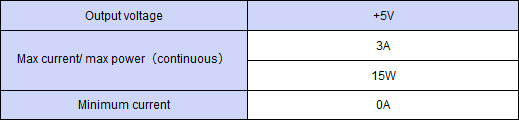

Output specification
Output specification ,Continuous 15W
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 50Wx28Hx105D
Weight 0.10 kg typ
Input Voltage AC 85-264V
Efficiency AC 75% typical at AC 100V/76% typical at AC 240V
Power factor
Input changeover system Worldwide
Safety Approved for UL60950-1, CSA60950-1
High frequency current regulation IEC61000-3-2 Edition 2.1 Class D compliant EN61000-3-2 A14 compliant
EMI standard
(Input feedback noise)
VCCI-B FCC-B CISPR22-B EN55022-B compliant
CE marking
EMS immunity Electrostatic discharge: EN61000-4-2 compliant
Radiated, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips and fluctuation: EN61000-4-11 compliant
MTBF 350,000H
Operating temperature -10 to 60 deg C.
Leakage current 0.5mA max. at AC 100V/1mA max. at AC 240V
Cooling systems Air-cooling without blower
Insulation AC1500V/min between AC input and FG/DC output 50 ohm min between AC input and DC output/FG and between DC output and FG
Output ground connection Capacitor ground
Warranty Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.
Accessory (Optional)
WH-C04XH-800 Output harness for OZ-015 series
WH-C05VH-800 Input Harness
WH-C05VH-800-01 Input Harness (Ferrite Core equipped)
