OZP-240/600P-24-J0E
			Stocked product	Inquiry / Quotations

The power supply featuring enhanced peak power(24V output, nylon connector type)
	Amazing support for the high peak load approx. 2.5 times larger With remote ON/OFF feature With blackouts detection signal Double-sided through-hole plated circuit board adopted A variable register for adjusting output voltage provided Back up possible for instantaneous power failure with aconnection of capacitor pack Built-in arrester + varistor for enhanced resistance to lightning surges
	Continuous 240W		Peak 600W

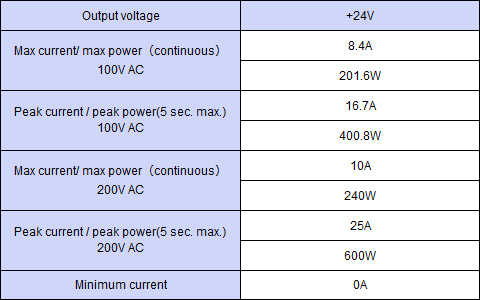

Output specification

Output specification ,Continuous 240W,Peak Capacity 600W

Standard, specifications: For standard and specifications, click each item.

Compatible case size	Other
Outline drawing	73Wx40Hx222D
Weight	0.53 kg typ
Input Voltage	AC	85-264V
Efficiency	AC	86% typ(100V AC)/90% typ(200V AC)
Power factor	99% typ(100V AC)/95% typ(200V AC)
Input changeover system	Worldwide
Safety	UL60950,CSA60950(c-UL), PSE(Ordinance item 2) Compliant CE marking(IEC62368-1)
High frequency current regulation	IEC61000-3-2 (ed.2.1) class D EN61000-3-2 (A14) class D compliant
EMI standard (Input feedback noise)	VCCI/FCC/CISPR32/EN55032 Class B compliant
CE marking	Low voltage and EMI directive and RoHS2.0
EMS immunity	Electrostatic discharge: EN61000-4-2 compliant Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant Fast transient burst: EN61000-4-4 compliant Lightning surge: EN61000-4-5 compliant Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant Power source frequency magnetic immunity: EN61000-4-8 compliant Voltage dips and fluctuation: EN61000-4-11 compliant
MTBF
Operating temperature	-10 to 60 deg.C
Leakage current	0.15mA typ(100V AC)/0.30mA typ(200V AC)
Cooling systems	Air-cooling without blower
Insulation	AC input - DC output AC3kV for 1 minute,AC input - FG AC2kV for 1 minute, DC output - FG AC500V for 1 minute,
Output ground connection	Capacitor ground
Warranty	Three years after delivery

Accessory (Optional)

WH-C05VH-800	Input Harness
WH-C08VH-500	Output Harness
