| Compatible case size |
Other |
| Outline drawing |
127Wx44Hx228.6D |
| Weight |
1.3 kg typ |
| Input Voltage |
AC |
85-264V |
| Efficiency |
AC |
93% typ(AC115V)/95% typ(AC200V) |
| Power factor |
98% typ(AC115V)/96% typ(AC200V) |
| Input changeover system |
Worldwide |
| Safety |
UL62368
PSE(Ordinance item 2) Compliant
CE marking |
| High frequency current regulation |
IEC61000-3-2 (ed.2.1) class D EN61000-3-2 (A14) class D compliant |
EMI standard
(Input feedback noise) |
VCCI/FCC/CISPR32/EN55032 Class B compliant |
| CE marking |
Low voltage and EMI directive and RoHS2.0 |
| EMS immunity |
Electrostatic discharge: EN61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips and fluctuation: EN61000-4-11 compliant |
| MTBF |
 |
| Operating temperature |
-20 - 70deg.C(Air-cooling without blower)/-20 - 70deg.C(Forced Air Cooling) |
| Leakage current |
0.06mA typ(AC100V),0.12mA typ(AC200V) |
| Cooling systems |
Air-cooling without blower |
| Insulation |
|
| Output ground connection |
Capacitor ground |
| Warranty |
Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us. |

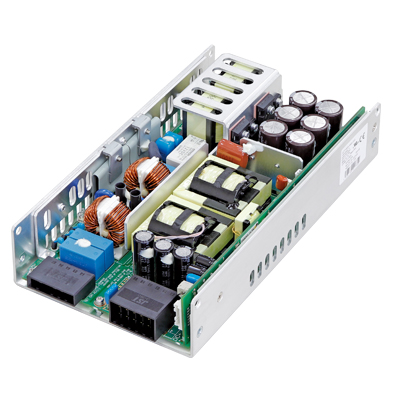

AC-DC Converter
