| Compatible case size |
Other |
| Outline drawing |
73Wx35Hx180D |
| Weight |
0.32 kg typ |
| Input Voltage |
AC |
85-264V |
| Efficiency |
AC |
81% typical at 12V/ 82% typical at 15V (AC 100V), 84% typial at 12V/ 85% typical at 15V (AC 200V) |
| Power factor |
99% typical at AC 100V/90% typical at AC 200V |
| Input changeover system |
Worldwide |
| Safety |
UL60950-1, CSA60950-1 |
| High frequency current regulation |
IEC61000-3-2 Edition 2.1 Class D compliant EN61000-3-2 A14 Class D compliant |
EMI standard
(Input feedback noise) |
VCCI-B FCC-B CISPR22-B EN55022-B compliant |
| CE marking |
 |
| EMS immunity |
Electrostatic discharge: EN61000-4-2 compliant
Radiated, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips fluctuation: EN61000-4-11 compliant |
| MTBF |
268,000H |
| Operating temperature |
-10 to 60 deg C / -10 to 70 deg C with forced-air cooling |
| Leakage current |
0.75mA max. |
| Cooling systems |
Air-cooling without blower |
| Insulation |
|
| Output ground connection |
Capacitor ground |
| Warranty |
Three years after delivery; the defective unit shall be repaired or replaced if defects belong to us. |

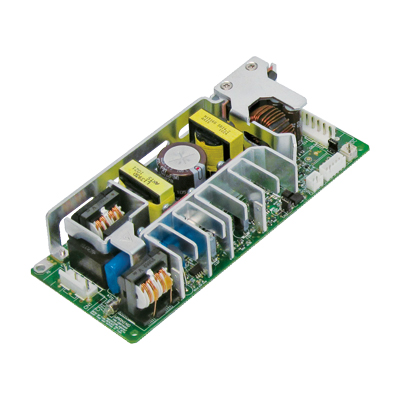

AC-DC Converter
