2.5 Bipron-made PC power supply and Redundant power supply
2.5.2 Redundant power supply

Redundant power supply operates in (N+1) redundant system with two power supply modules connected in parallel where when one module fails, the other can take over.
When 100W output is required, for example, two 50W power supplies in parallel connection can afford the power. By adding another 50W power supply (+1), when one module fails, the other two keeps running to operate without problem. This is redundant system (Figure 2.6).

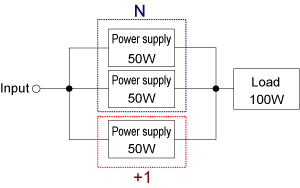

Fig. 2.6¡¡N+1 redundant operation
Fig. 2.6¡¡N+1 redundant operation

That is, by (N+1) redundant operation, reliability of system can be enhanced.

arrow

Materialization of High reliability

Also, with "hot-swappable," availability can be increased.

arrow

Materialization of High reliability
