CB03A-EC400/801F
Power supply encyclopedia
CB03A-EC400/801F
Stocked product Inquiry / Quotations

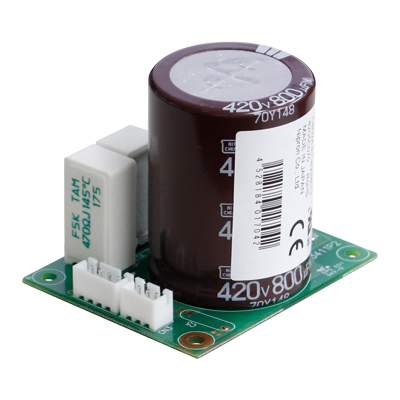

A trouble concerning a countermeasure against instantaneous power failure is solved! Capacitor backup unit.

A trouble concerning a countermeasure against instantaneous power failure is solved! Capacitor backup unit.

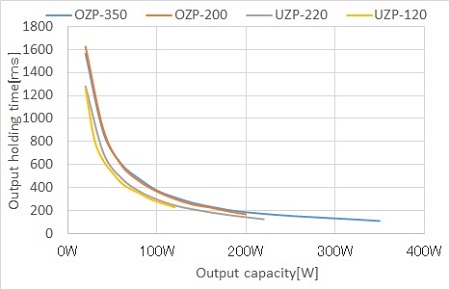

Connection of this product with AC/DC switching power supply of our company enables prolonged output holding time and a countermeasure against instantaneous power failure.
It allows for parallel connection and further prolonged output holding time.
It is equipped with a blackout detection signal as standard.

Applicable power supplies
UZP-120 Series *1
UZP-220 Series
OZP-200 Series
OZP-350 Series *2

*1 It is not compatible with UZP-120-**-J0L type.
*2 If you need safety standard, please contact us.
Battery Data
Battery Data
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 50Wx50Hx60D
Weight 0.09 kg typ
Applied battery
Nominal battery power voltage
Rating capacity
Built in fuse rating
Operating temperature -10 to 70 deg.C
Storage temperature/humidity -25 to 75 deg.C
Warranty Three years after delivery; Any defects belong to us, the defective unit shall be repaired or replaced at our cost.
