CB01A-EC400/322F
Stocked product Inquiry / Quotations

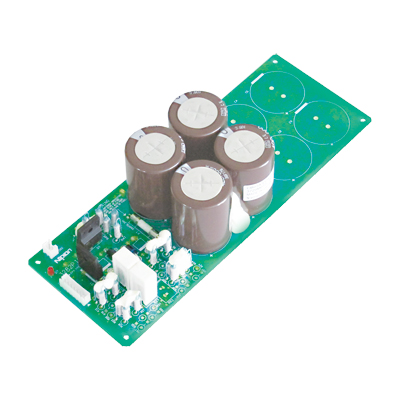

Capacitor backup unit.

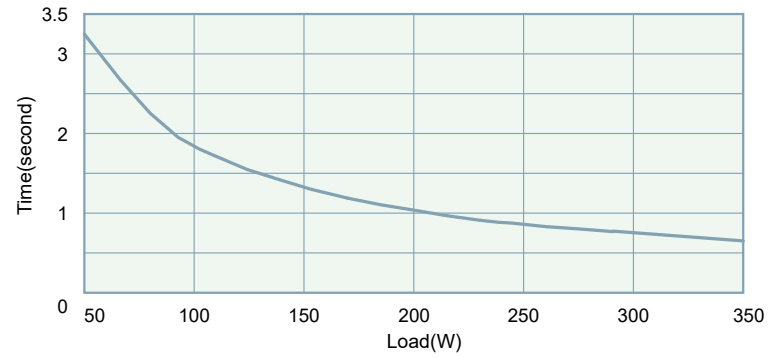

 CB01A-EC400/322F the backup time to 0.5 sec (at 350W load) if required.
Advantages of using a capacitor pack
Maintenance-free (no regular replacement required)
-Compatible with low-temperature and high-temperature °ŁAchieves backup for about 0.5 seconds during a power failure (typ value at 350W output)°Ł Advantages of using a capacitor pack
-Maintenance-free (no regular replacement required)
-Compatible with low-temperature and high-temperature environments (0 deg.C to 60 deg.C)
30 Quick charge for seconds (corresponds to frequent power outages)
Compatible power supply
- OZP-350-**-* SEB
This product is dangerous because it has high voltage parts such as the connection part with the power supply. When using, be sure to carefully check the items in the product specifications before using the product correctly.
Battery Data
Battery Data
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 83Wx53Hx222D
Weight 0.4 kg typ
Applied battery
Nominal battery power voltage
Rating capacity 420V 3200uF
Built in fuse rating
Operating temperature 0 to 60 deg.C
Storage temperature/humidity -20 to 70 deg.C /10 to 95%RH
Warranty Three years after delivery; Any defects belong to us, the defective unit shall be repaired or replaced at our cost.
